LOW BUDGET: BUY YOUR CONVEYOR IN KIT

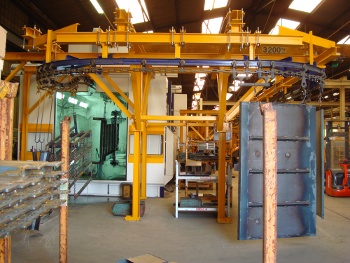

These Mono rail conveyors , simple and reliable design are composed of one I beam lane on the wings of which circulate the trolleys connected by an X Type forged chain.

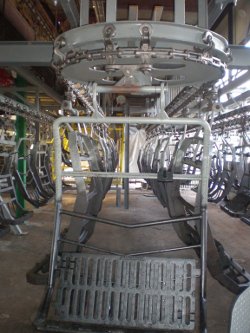

This chain is pulled by a drive unit and the tension is continuously made by a tension unit with springs or counterweights.
They offer multiple technical options to adapt to the demands of the surface treatment or connection lines.

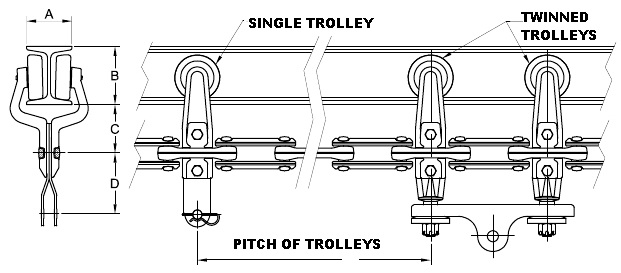

TYPE |
SR2 |
SR3 |
SR4 |
SR6 |
|
A in mm |
46 | 59,2 | 67,5 | 84,6 | |
B in mm |
80 | 76,2 | 101,6 | 152,4 | |
C in mm |
60 | 63,5 | 81 | 102 | |
D in mm |
51 | 80 | 73 | 92 | |
Single trolley capicity (daN) |
100 | 180 | 360 | 770 | |
Max loads (daN) |
Single Trolley |
50 | 100 | 225 | 550 |
Twinned Trolleys |
100 | 200 | 450 | 1100 |
On one or several trolleys.
Loading on load bars or directly on the trolleys.
On rotary hooks for presenting the workpiece in position depending on the equipment.
Lubrication long duration with up to 8000 hours without any intervention on trolleys at 250 ° max.
IAS half hard steel beam.
Trolleys wheels visible in the whole circuit.
Chain requiring little lubrication (less than 1 lap per month).
Possibility of delivery of the equipment in kits for cost reduction
